Our main focus is to provide the best quality NX CAM postprocessors for all kinds of machines. We have 10 years of experience in implementing the most difficult post processor and simulation projects in diverse production areas.

From simple 3-axis vertical mill to 5 axis simultaneous (5 axis mill or B axis style/multi turret lathe) we can handle any postprocessor or simulation requirement.

Such advanced, well customized and tested postprocessor, with reliable machine tool simulation, is a foundation of successful use of CAM software for production on CNC machines.

    Postprocessor & ISV kit for Grob 5 axis

    Postprocessor & ISV kit for Yasda 5 axis

    Mill-turns simulation in NX CAM

    Feedback

    Our sample implementations:

    Grob G350
    5-axis universal machining center with Sinumerik 840D sl controller.
    Postprocessor uses CYCLE800 transformation for 3+2 machining and TRAORI mode for full simultaneous 5-axis machining.

    Postprocessors grob g350
    Postprocessors Yasda PX30I

    Yasda PX30i
    5-axis vertical machining center with Fanuc 31i controller.
    Postprocessor uses G68.2 transformation for 3+2 machining and G43.4 mode for full simultaneous 5-axis machining.

    CTX Gamma 3000 TC
    Multifunction turning center with Sinumerik 840D controller.
    Postprocessor and ISV kit covers all machining modes:
    – turning at any B-axis angle
    – 3+2 milling with CYCLE 800
    – 5-axis simultaneous milling with TRAORI
    – front face machining using XYZ and TRANSMIT
    – programming NC controlled steady rests and tailstock

    Examples with this postprocessor & ISV kit:
    https://youtu.be/3iS3Ks8oXrY?t=25

    DMU 60 eVo
    5-axis vertical machining center with Heidenhain iTNC530 controller.
    Postprocessor uses PLANE SPATIAL transformation for 3+2 machining and M128 mode for full simultaneous 5-axis machining.

    Postprocessors Okuma Multus B550 NX

    Okuma Multus B550
    Dual-spindle multifunction turning center with OSP-300 controller.
    Postprocessor and ISV kit covers all machining modes (on main- and sub-spindle):
    – turning at any B-axis angle
    – 3+2 milling with G127 (slant machining mode)
    – 5-axis simultaneous milling
    – front face machining using XYZ and G137 (XZC mode)
    – programming NC controlled steady rest
    – sub-spindle can work in tailstock mode
    – programming workpiece takeover

    Examples with this postprocessor & ISV kit:
    https://youtu.be/3iS3Ks8oXrY?t=573

    Postprocessors Okuma Multus B550
    Postprocessor HAAS UMC-750

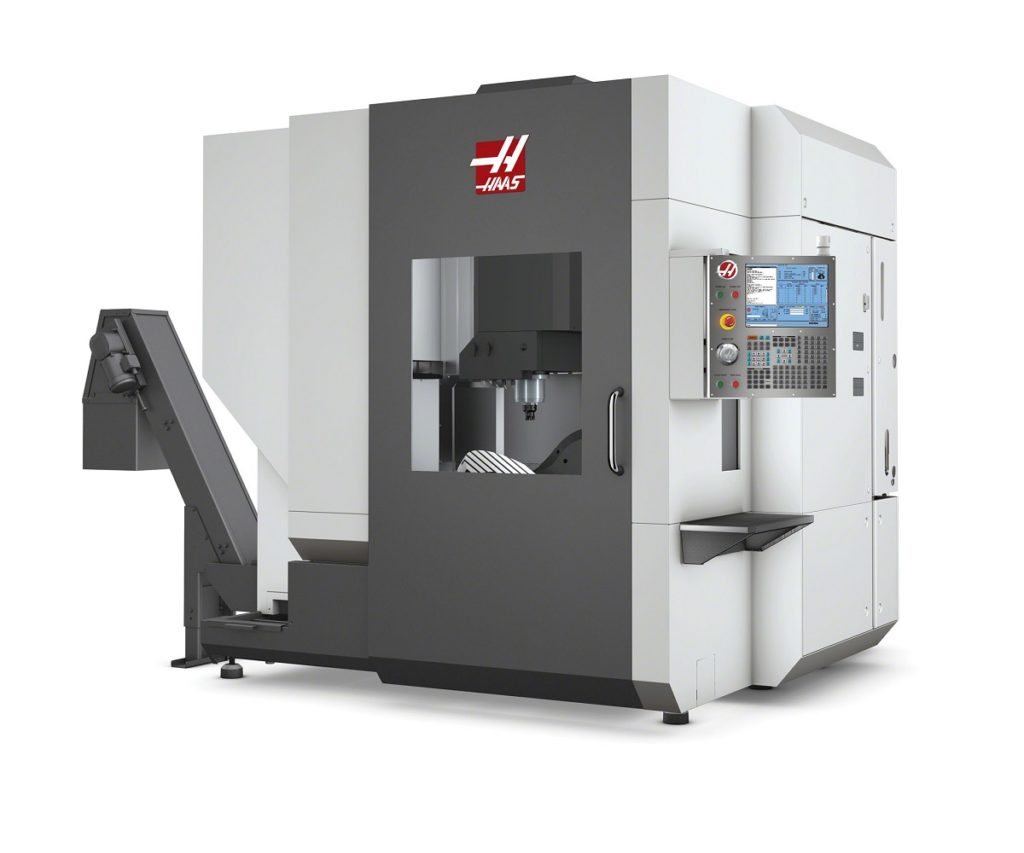

    HAAS UMC-750
    5-axis vertical machining center.
    Postprocessor uses G254 (Dynamic Work Offset) for 3+2 machining and G234 (Tool Center Point Control) for full simultaneous 5-axis milling.
    Integrated Simulation and Verification covers all machining modes and collision detection also during tool change routine

    Examples with this postprocessor and ISV kit:
    https://youtu.be/rck2lclWdiQ?t=50
    https://youtu.be/ZRnxTZ2XCsI

    Postprocessors HAAS ISV

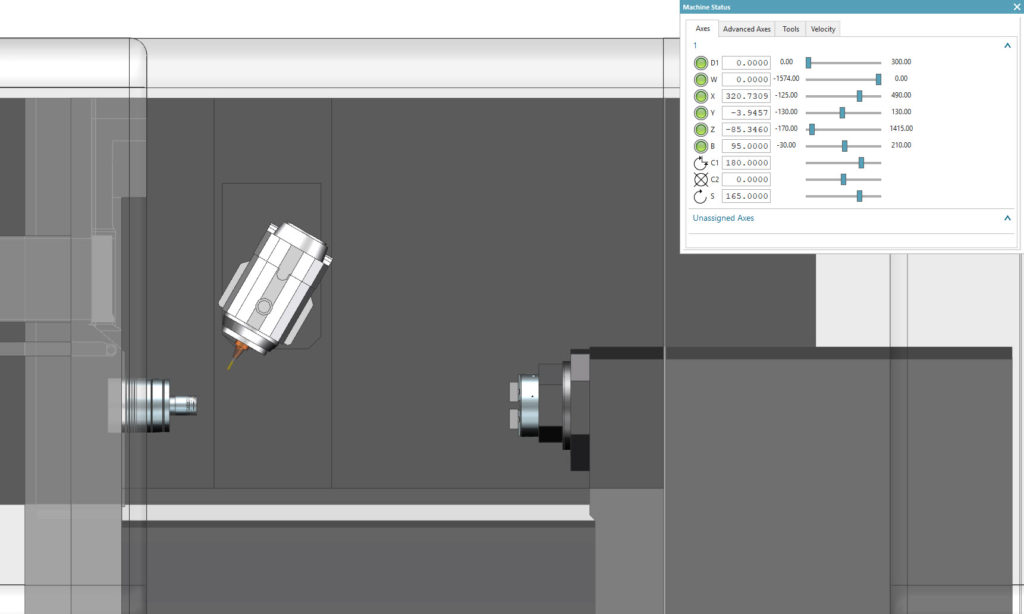

    Mazak INTEGREX i400S
    Dual-spindle multifunction turning center with MAZATROL SmoothX controller.
    Postprocessor and ISV kit covers all machining modes (on main- and sub-spindle):
    – turning at any B-axis angle
    – 3+2 milling with G68.2
    – 5-axis simultaneous milling using G43.4
    – front face machining using XYZ and G12.1
    – programming workpiece takeover

    DMG Mori NMV 5000 DCG
    5-axis vertical machining center with MAPPS IV.
    Postprocessor uses G65 P9681 macro for 3+2 machining and G43.4 mode for full simultaneous 5-axis machining.

    Postprocessors TQS WHR 13 Q

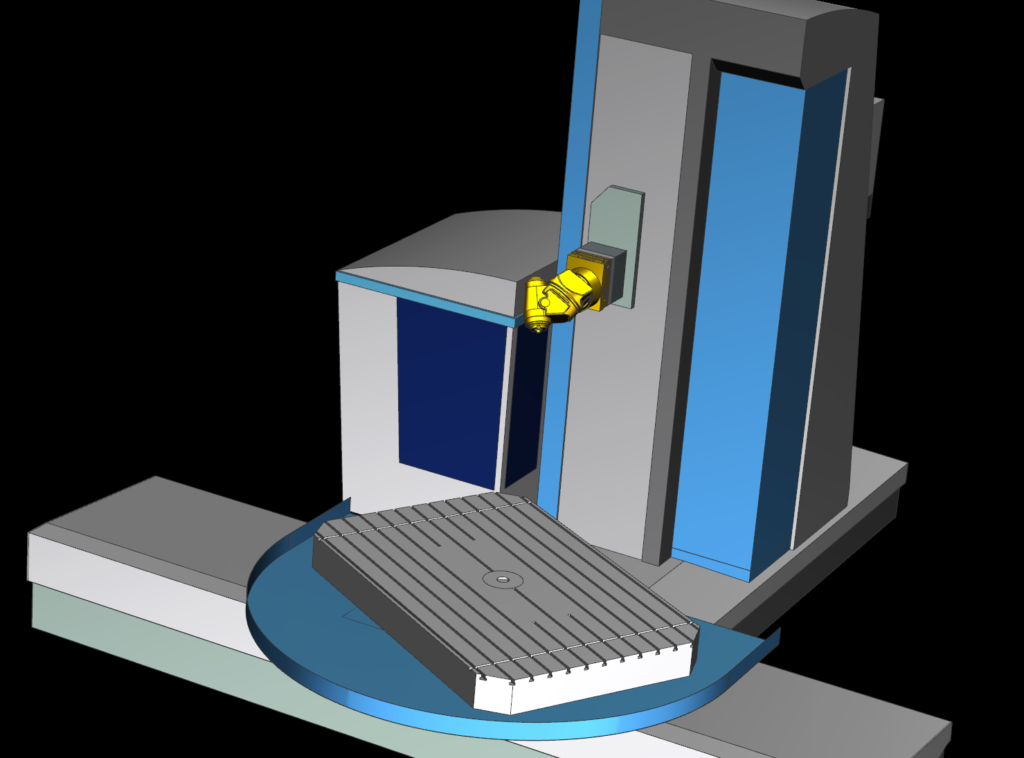

    TOS WHR 13 Q
    Horizontal machining center with replaceable heads and HEIDENHAIN iTNC 530 controller.
    Postprocessor and ISV covers all machining modes using 8 cnc controlled axes.

    Postprocessors TOS WHR 13 for NX
    P ostprocessors Fidia G 996 RT

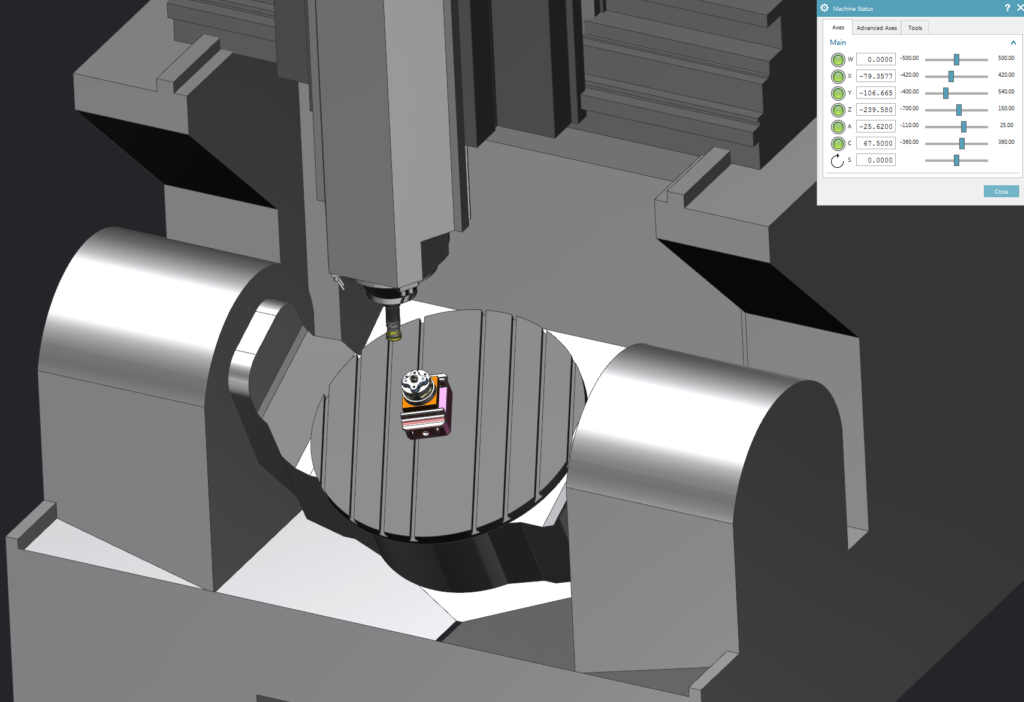

    Fidia G 996 RT
    5-axis vertical machining center with Fidia C20 controller.
    Postprocessor uses G21 transformation for 3+2 machining and G196 ROTO “RTCP on rotary table” mode for full simultaneous 5-axis machining.
    Interesting feature is that 5-axis drilling cycles use virtual quill (W axis)

    Postprocessors fidia G 996 RT for NX
    Postprocessors Doosan Lynx 220LSYC

    Doosan Lynx 220LSYC
    Millturn machining center with Fanuc controller.
    Postprocessor handles all machining modes, like:
    – turning
    – XYZC milling
    – XZC milling with G12.1 transformation
    – machining on main- and sub-spindle
    – workpiece takeover operation

    Get a quick quote for postprocessor or NC-code simulation kit
    for your machine!
