Operation Navigator Wizard is responsible to organize your operations in elegant form. There are two possibilities available:

Automatic rename operations

Following parameters can be used to build the template of operation names:

  • Sequence Number
  • Operation Type
  • Operation Subtype
  • Method Name used in the Operation
  • Name, Type and Subtype of Tool used in the Operation
  • Name of current Part File (prt)
  • Name of Selected Program Group
  • Name of Parent Group of the Operation
  • Additional custom String

Automatic organize operations in groups

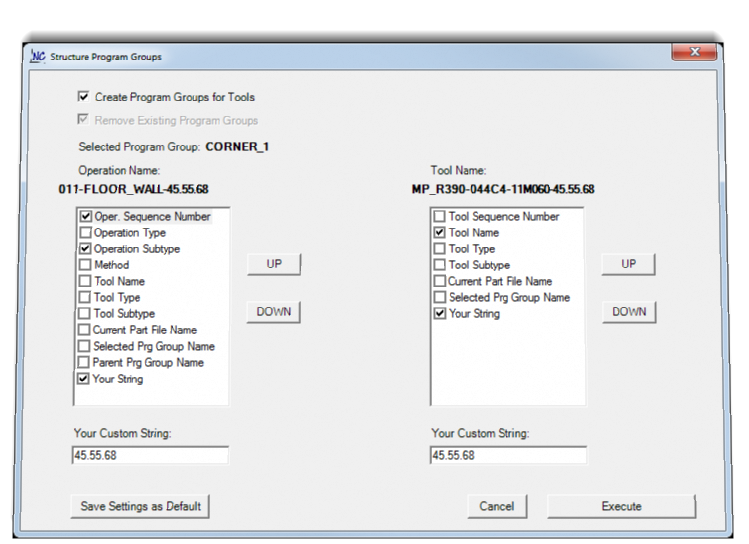

Each group is a sequence of operations using the same tool. Sequence of operations stays untouched, operations are just grouped. Following parameters can be used to build the template of Program Group names:

  • Sequence Number
  • Name, Type and Subtype of the Tool
  • Name of current Part File (prt)
  • Name of Selected Program Group
  • Additional custom String

All those parameters can be set in any order. While modifying name template, you will see actual preview of operation name, so you can see example of a result even before application does it’s actual job.

You don’t need to setup template of names every time, it can be saved as default at any time!

On a this video you can find a short demonstration of using Operation Navigator Wizard
