On a this video you can find a short demonstration of using Operation Navigator Wizard

If you are interested to take a closer look to Operation Navigator Wizard, feel free to contact me directly.

Operation Navigator Wizard is responsible to organize your operations in elegant form. There are two possibilities available:

  • Automatic rename operations. Following parameters can be used to build the template of operation names:
    – Sequence Number
    – Operation Type
    – Operation Subtype
    – Method Name used in the Operation
    – Name, Type and Subtype of Tool used in the Operation
    – Name of current Part File (prt)
    – Name of Selected Program Group
    – Name of Parent Group of the Operation
    – Additional custom String

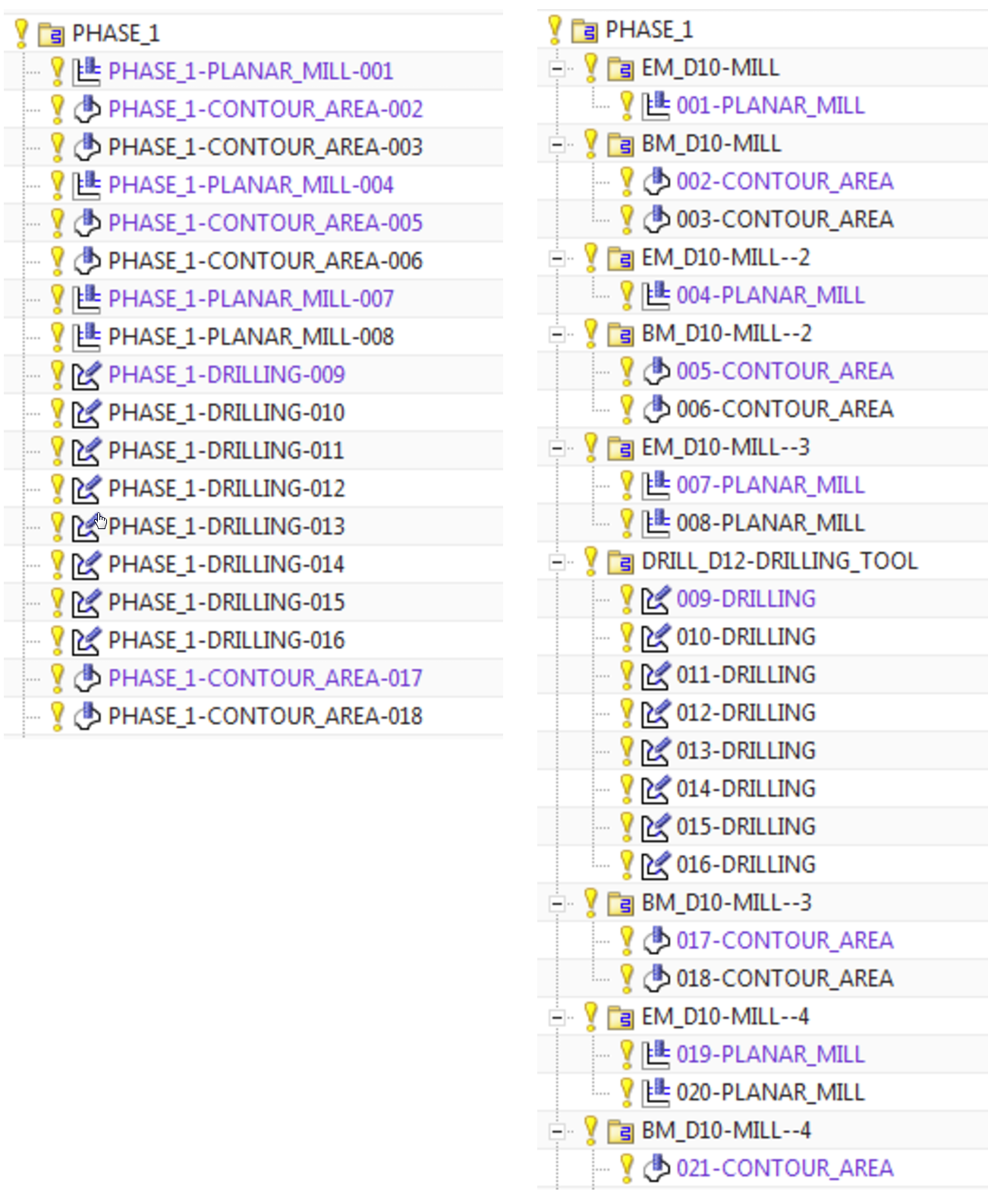

  • Automatic organize operations in groups. Each group is a sequence of operations using the same tool. Sequence of operations stays untouched, operations are just grouped. Following parameters can be used to build the template of Program Group names:
    – Sequence Number
    – Name, Type and Subtype of the Tool
    – Name of current Part File (prt)
    – Name of Selected Program Group
    – Additional custom String



All those parameters can be set in any order. While modifying name template, you will see actual preview of operation name, so you can see example of a result even before application does it’s actual job.
You don’t need to setup template of names every time, it can be saved as default at any time.
